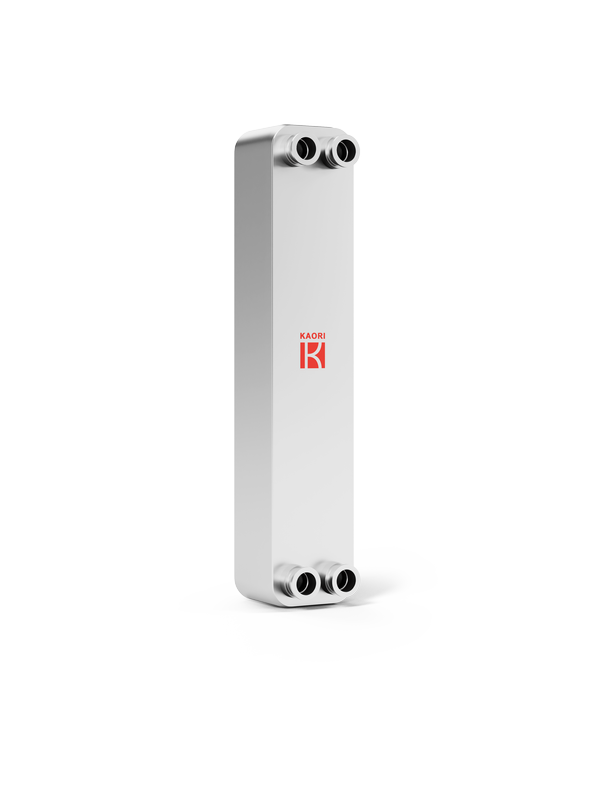

Super High Temperature BPHE
H096 are made of heat resistence stainless steel, able to sustain up to 550°C. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry：
Reefer / Freezer
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Application：
Other
Plate Material：
SUS310S
Brazing Material：
Ni
Max number of plates(N)：
80
Working Pressure：
10
Max working temperature：
550
Thickness(mm)：
10.0+2.40*N
Weight(kg)：
3.15+0.204*N
Connection-Solder(up to)：
Depends on working condition
L1(mm)：
522
L2(mm)：
466
W1(mm)：
106
W2(mm)：
50
