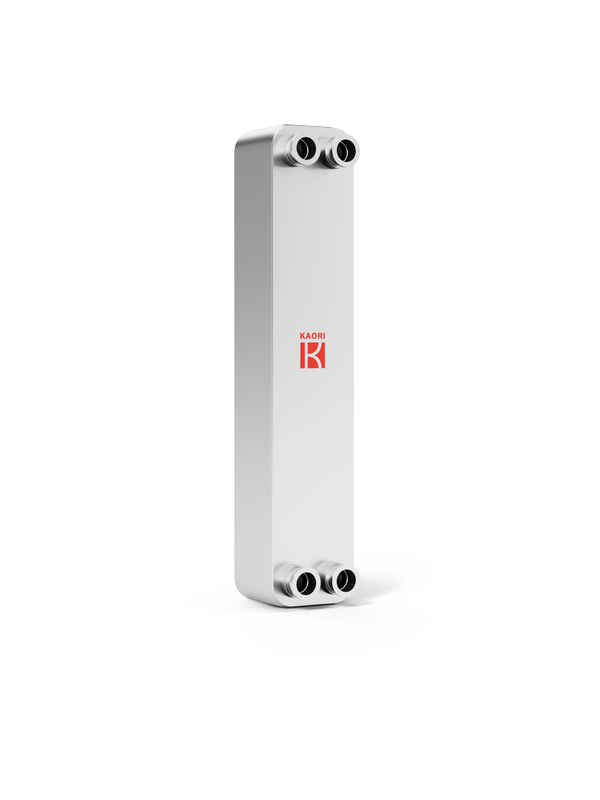

H095
H095
Super High Temperature BPHE
H095 are made of heat resistence stainless steel, able to sustain up to 900℃. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry：
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Renewable Energy
Application：
Other
Plate Material：
Equivalent to SMO254
Brazing Material：
Ni
Max number of plates(N)：
80
Working Pressure：
10
Min test pressure(bar)：
900
Thickness(mm)：
10.0+2.40*N
Weight(kg)：
3.32+0.240*N
Connection-Solder(up to)：
Depends on working condition
L1(mm)：
522
L2(mm)：
466
W1(mm)：
106
W2(mm)：
50
