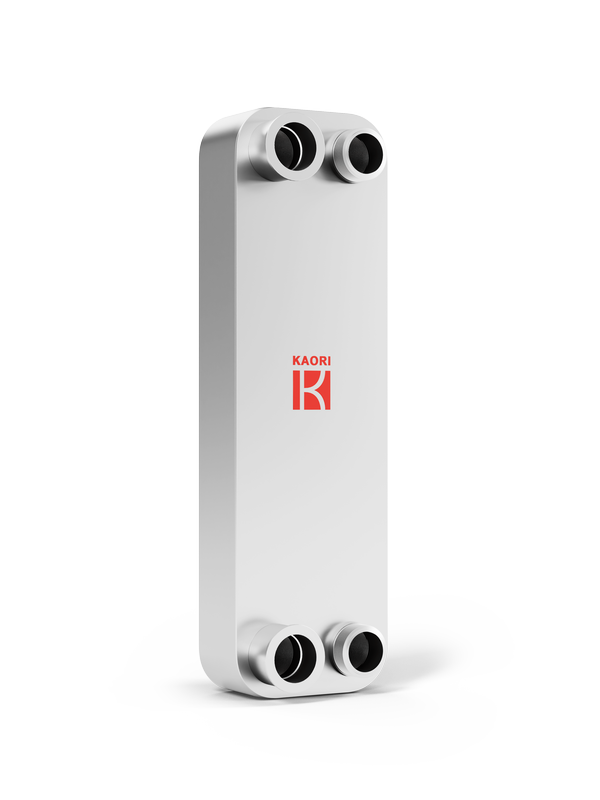

C200
C200
Ultra High Pressure BPHE
C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.
C200 can sustain 70BAR. It is suitable for evaporator and condenser in refrigeration and freezing storage.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Application：
Evaporator
Condenser
Subcooler
Economizer
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
250
Working Pressure：
70
Max working temperature：
200
Thickness(mm)：
14.0+2.15*N
Weight(kg)：
12.39+0.603*N
Connection-Solder(up to)：
Depends on working condition
L1(mm)：
616
L2(mm)：
519
W1(mm)：
189
W2(mm)：
92
