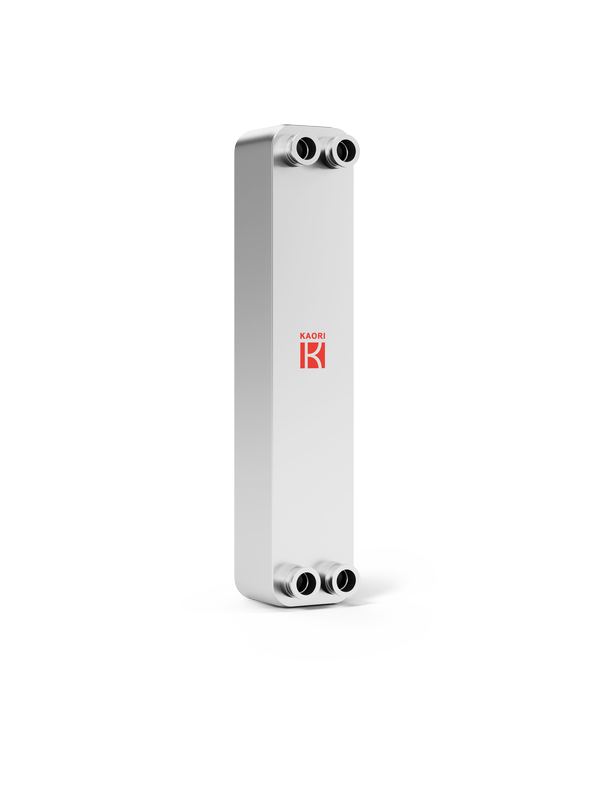

C096
C096
Ultra High Pressure BPHE
C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.
C096 can sustain 100BAR and afford the pressure caused by R744 as thermal media. This capacity delights the COP value and results in "0 "ODP to protect the environment where we live. C096 can work well with pre-cooler and pervasive in various kinds of residential heat pump.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Application：
Evaporator
Condenser
Subcooler
Economizer
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
110
Working Pressure：
100
Max working temperature：
200
Thickness(mm)：
13.2+2.16*N
Weight(kg)：
5.68+0.320*N
Connection-Solder(up to)：
Depends on working condition
L1(mm)：
524
L2(mm)：
466
W1(mm)：
108
W2(mm)：
50
