Z400
Z400
Diagnol Flow BPHE

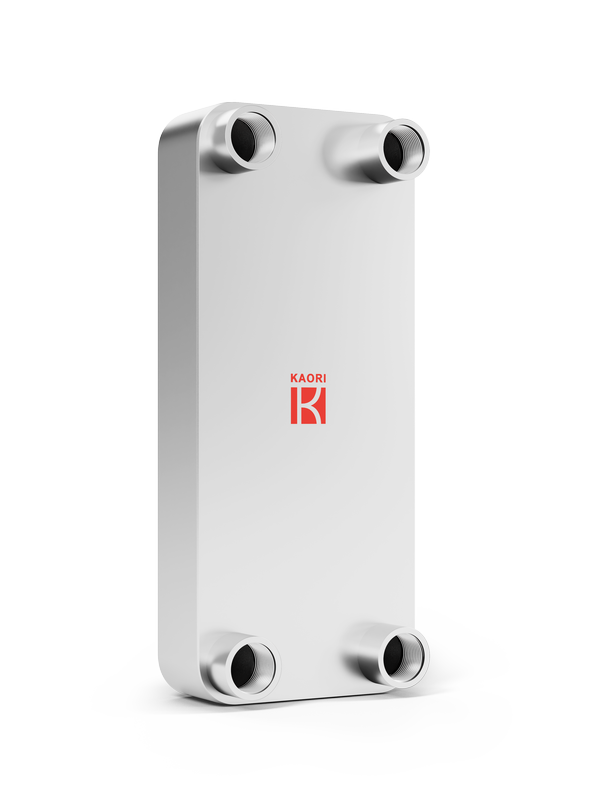

Z series is designed with diagonal flow pattern, featured in high efficiency and wide range of application. It can be used to replace tube, shell and spiral heat exchangers. The unique pattern of diagonal flow utilizes the transfer area on the plate and refrains the risk of freezing, resulting from water remaining on the corner of plate. This design rises the durability and expands the feasiblity of the application , such as evaporator, condenser, oil cooler, and district heating system.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
250
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
14.0+2.38*N
Weight(kg)：
25.32+0.89*N
Connection-Male Thread(up to)：
3"
Connection-Female Thread(up to)：
3"
Connection-Solder(up to)：
3 1/8"
Connection-Flange(up to)：
3"
L1(mm)：
751
L2(mm)：
650
W1(mm)：
321
W2(mm)：
220
