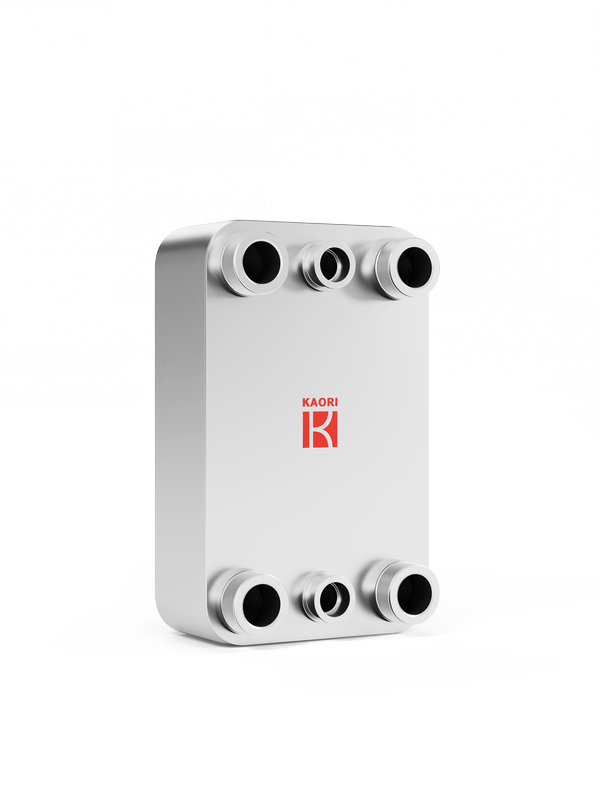

Z085D
Z085D
Diagnol Flow BPHE
Z085D is a perfect fit for 20~30 kW dual refrigerant circuits or dual water circuit used in customized heat pump, district heating and industrial chiller. It is the smallest scale brazed plate heat exchanger for dual system, providing flexibility to customer's demand.
The all new Kaori Z085D dual system product not only optimize fluid distribution, thermal efficiency, pressure resistance, compactness and simplicity of external piping, it can also expand into four system design, widening the field o f application.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Solar Heating
Floor Heating
Snow Melting
District Heating
Fluid Cooling/Heating
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Oilcooler
Intercooler
Other
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
120
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
10+1.55*N
Weight(kg)：
3.29+0.184*N
Connection-Male Thread(up to)：
1 1/4"
Connection-Female Thread(up to)：
1"
Connection-Solder(up to)：
1 5/8"
L1(mm)：
307
L2(mm)：
244
W1(mm)：
190
W2(mm)：
127
