A072
A072

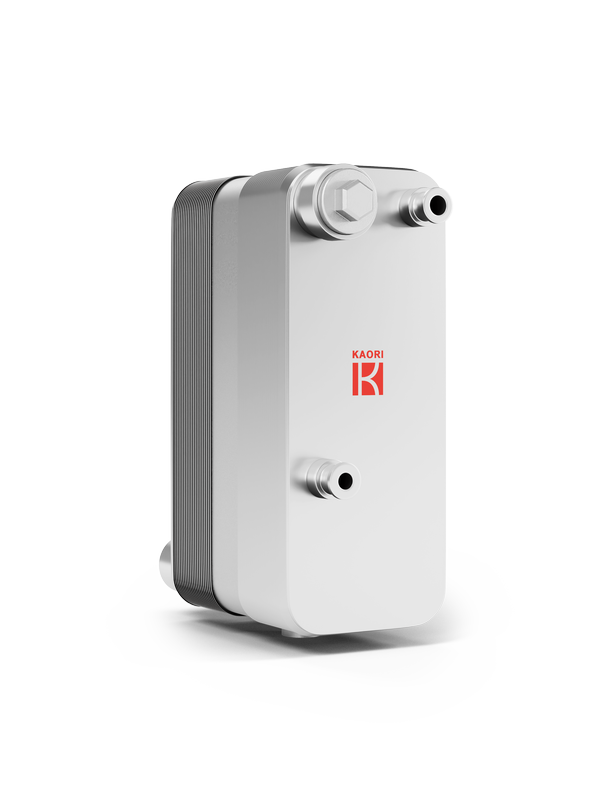

Air Dryer BPHE
KAORI A072 High Pressure Air Dryer Series are available in operating up to 45 bar (653 PSI).
The best component for high pressure refrigerated air dryer, it is combined with a pre-cooler/ heater, separator, and an evaporator, eliminating water vapor from high pressure compressed air with dew points from 3°C to 10°C.
With reliable stainless steel and optimized efficiency design, KAORI Air Dryer Series have the advantages of size reducing, clogging free, easy
to maintain, and anti-corrosion, providing perfect solutions for refrigerated air dryers applying in PET blow molding, pharmaceutical packaging,
injection molding and other applications that require high pressure heat exchangers.
Industry：
Air Dryer
Air Compressor
Application：
Other
Plate Material：
SUS304
Brazing Material：
Copper
Max number of plates(N)：
100
Working Pressure：
45
Min test pressure(bar)：
65
Max working temperature：
200
Plate Heat Transfer Area：
depends on the number of plates
Thickness(mm)：
depends on the number of plates
Connection-Solder(up to)：
Depends on working condition
L1(mm)：
304
L2(mm)：
250
W1(mm)：
124
W2(mm)：
70
