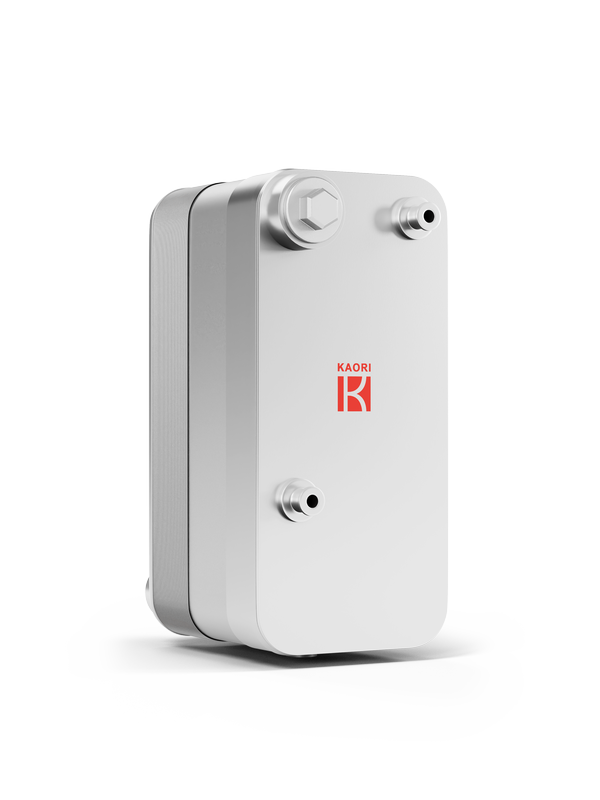

A140
A140
Air Dryer BPHE
A140 is dedicated to the application related to cooling air dryer. The integration of A series includes gas pre-cooling, evaporator and separator. The patented design separator can perfectly dehumidify the compressed air and prevent from clogging. The design can effectively save the time in configuration and space.
Industry：
Air Dryer
Air Compressor
Application：
Other
Plate Material：
SUS304
Brazing Material：
Copper
Max number of plates(N)：
100
Working Pressure：
30
Min test pressure(bar)：
43
Max working temperature：
200
Thickness(mm)：
depends on the number of plates
Weight(kg)：
depends on the number of plates
Connection-Solder(up to)：
Depends on working condition
L1(mm)：
441
L2(mm)：
360
W1(mm)：
206
W2(mm)：
125
