K070S
K070S

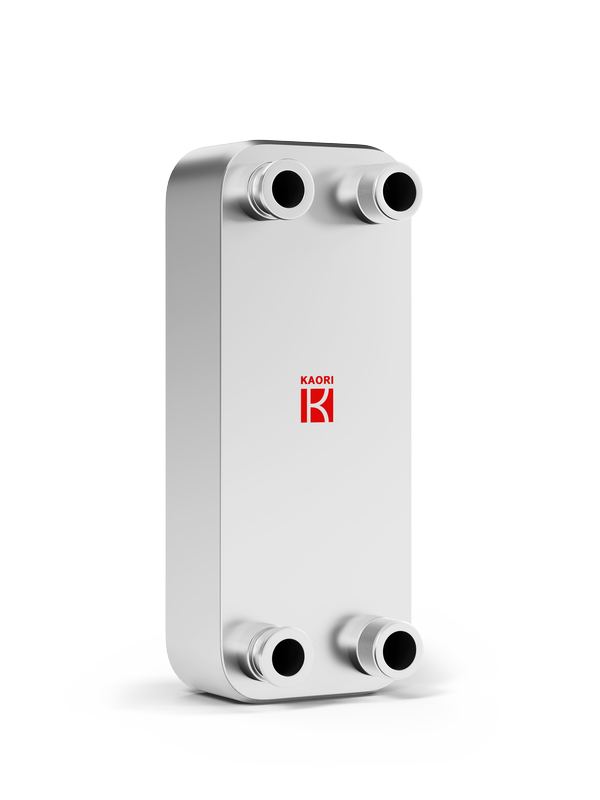

Extra Strength Brazed Plate Heat Exchanger
K070S has sustainability for 45BAR and well fits into high pressure refrigerant like R410A & R134a.
K070S is commonly used in refrigeration and heat pump. The high thermal efficiency and compact size saves the use of refrigerant in system and space in configuration.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
120
Working Pressure：
45
Max working temperature：
200
Thickness(mm)：
12.0+2.38*N
Weight(kg)：
2.52+0.134*N
Connection-Male Thread(up to)：
1 1/2"
Connection-Female Thread(up to)：
1 1/4"
Connection-Solder(up to)：
1 3/8"
L1(mm)：
304
L2(mm)：
250
W1(mm)：
124
W2(mm)：
70
