K030S
K030S

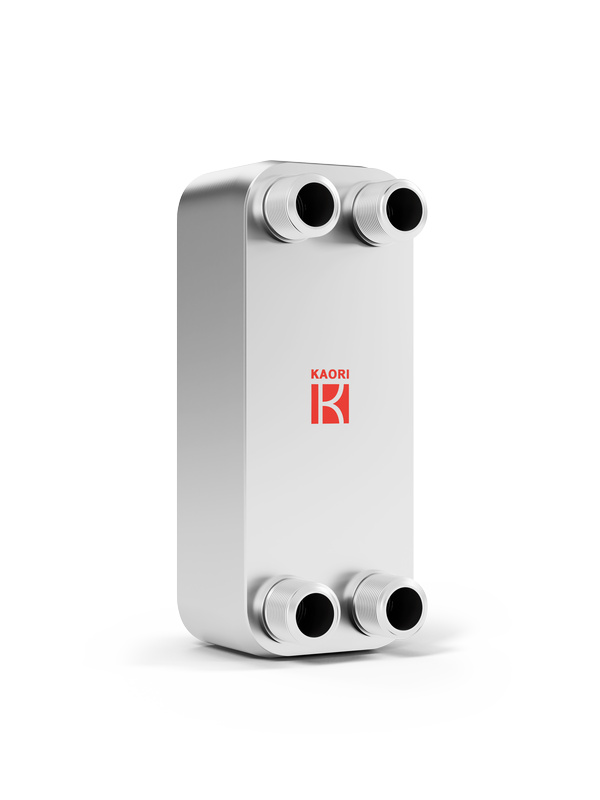

Extra Strength Brazed Plate Heat Exchanger
K030S has the capability to endure high pressure caused by R410A, R134a up to 45 BAR and other highly compressed gas in condenser and de-superheater. Despite home-use & commercial HVAC, K030S can be visible in industrial and medical refrigeration system.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Solar Heating
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
80
Working Pressure：
45
Max working temperature：
200
Thickness(mm)：
11.0+2.20*N
Weight(kg)：
0.96+0.047*N
Connection-Male Thread(up to)：
3/4"
Connection-Female Thread(up to)：
3/4"
Connection-Solder(up to)：
7/8"
L1(mm)：
194
L2(mm)：
154
W1(mm)：
80
W2(mm)：
40
