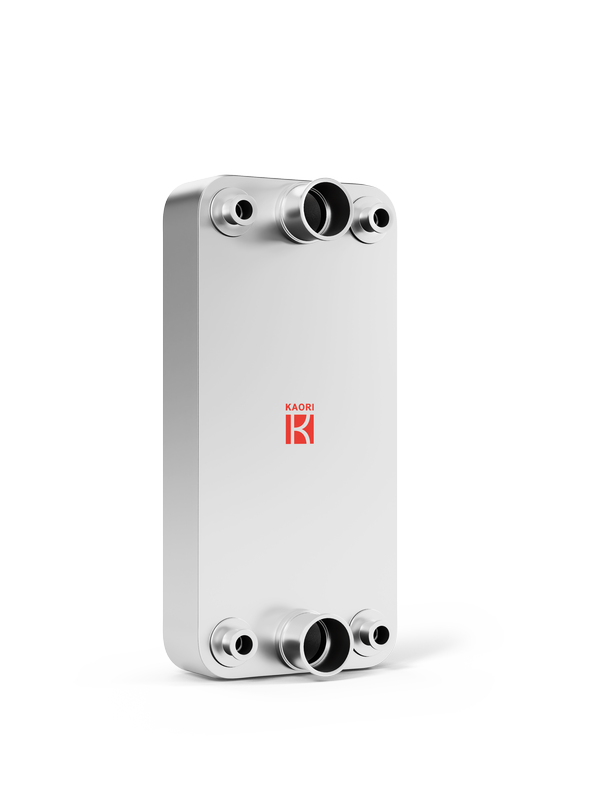

R215D
R215D
Micro Channel BPHE
R215D is the newly-developed BPHE dedicated to environment-friendly and high thermal transferring refrigerant such as R290(Propane),R32,R410A, R134a. Its 10% higher efficiency than conventional BPHE and lightweight significantly redue the carbon emission.
R215D provides the heating or cooling system developer's expected performance of evaporator and condenser.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Process Cooling/Heating
Semi Conductor
Machine Tool
Renewable Energy
District Heating
Boiler
Data Center Infrastructure
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
222
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
14.0+1.85*N
Weight(kg)：
7.89+0.430*N
Connection-Male Thread(up to)：
2 1/2"
Connection-Female Thread(up to)：
2"
Connection-Solder(up to)：
2 1/8"
L1(mm)：
529
L2(mm)：
449
W1(mm)：
247
W2(mm)：
167
